Pass-through conductor layout
Conductors feed through the front of the plug so their order can be checked before the final crimp and trim.

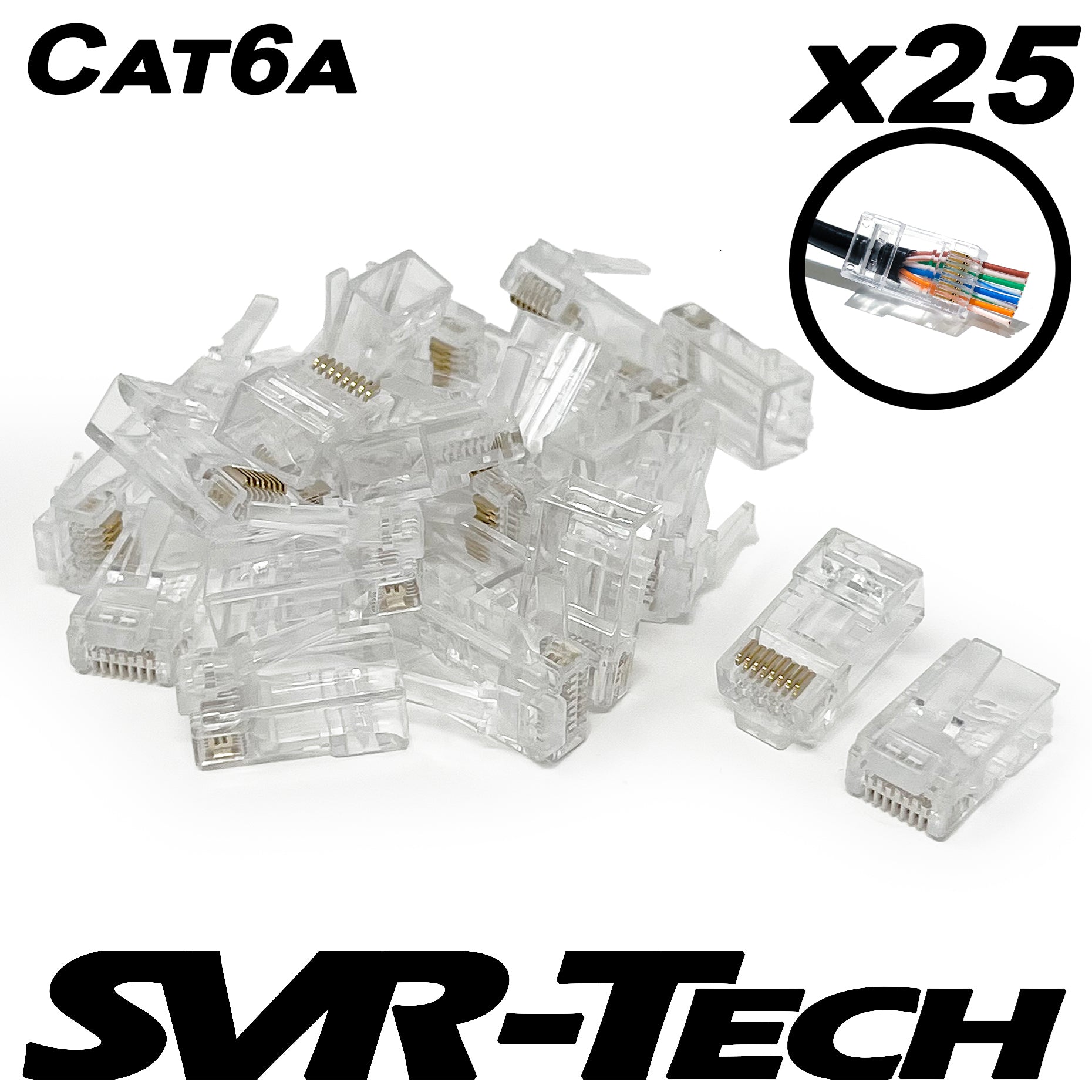

SVR-Tech RJ45 Cat6a Pass-Through Connectors
£7.95
1
Key elements
Staggered conductor path
The internal pass-through layout is staggered to help accommodate the larger insulated conductors commonly found in Cat6 and Cat6a cable.
Built around conductor fitment
Designed for compatible cable with individual insulated conductors up to 1.2 mm in diameter, including the insulation.
25-pack for repeat terminations
A practical pack size for installers carrying out multiple network cable terminations or keeping replacement plugs on hand.
Technical information
Specifications
- Pack size
- 25 connectors
- Cable type
- Cat6 / Cat6a UTP
- Conductor size
- Up to 1.2 mm incl. insulation
- Design
- Staggered pass-through
- SKU
- SVRPT-6ASTD
In the box
What’s included
- 25 × SVR-Tech Cat6a RJ45 UTP Pass-Through Connectors
Product details
Pass-through RJ45 connectors designed for larger Cat6 and Cat6a UTP conductors.
The SVR-Tech Cat6a RJ45 Pass-Through Connectors are designed for Cat6 and Cat6a UTP network cable with individual insulated conductors up to 1.2 mm in diameter. The staggered pass-through layout helps larger conductors feed through the plug more easily while keeping the eight conductors organised for termination.
The pass-through design also lets you see the conductor order at the front of the plug before the final crimp and trim, making these a practical choice for installers carrying out repeated network cable terminations.
Key features
- Suitable for compatible Cat6 and Cat6a UTP cable
- RJ45 pass-through design for easier conductor positioning
- Staggered conductor path to accommodate larger Cat6/Cat6a conductors
- Suitable for individual insulated conductors up to 1.2 mm in diameter
- Allows conductor order to be checked before final crimping and trimming
- 25 connectors per pack
Check cable fit before ordering
Cat6 and Cat6a cable dimensions vary between manufacturers. Check the diameter of the individual insulated conductors before ordering. These connectors are designed for conductors up to 1.2 mm in diameter, including the insulation.
Termination
Feed the prepared conductors through the connector in the required wiring order, confirm their position, then crimp and trim using a compatible RJ45 pass-through crimping tool.
What’s included
- 25 × SVR-Tech Cat6a RJ45 UTP Pass-Through Connectors
Frequently asked questions
Are these connectors shielded?
No. This listing is for UTP (unshielded) RJ45 pass-through connectors.
Which cable are these connectors suitable for?
They are designed for compatible Cat6 and Cat6a UTP network cable.
What conductor size will fit?
The published fitment is for individual insulated conductors up to 1.2 mm in diameter, including the insulation. Cable dimensions vary, so check your cable before ordering.
Do I need a pass-through crimping tool?
Use a compatible RJ45 pass-through crimping tool so the connector can be crimped and the protruding conductors trimmed correctly.
How many connectors are included?
The pack contains 25 SVR-Tech Cat6a UTP RJ45 pass-through connectors.
-
