Guide rail for conductor alignment
The supplied guide rail helps organise and align the conductors before they are inserted into the connector and crimped.

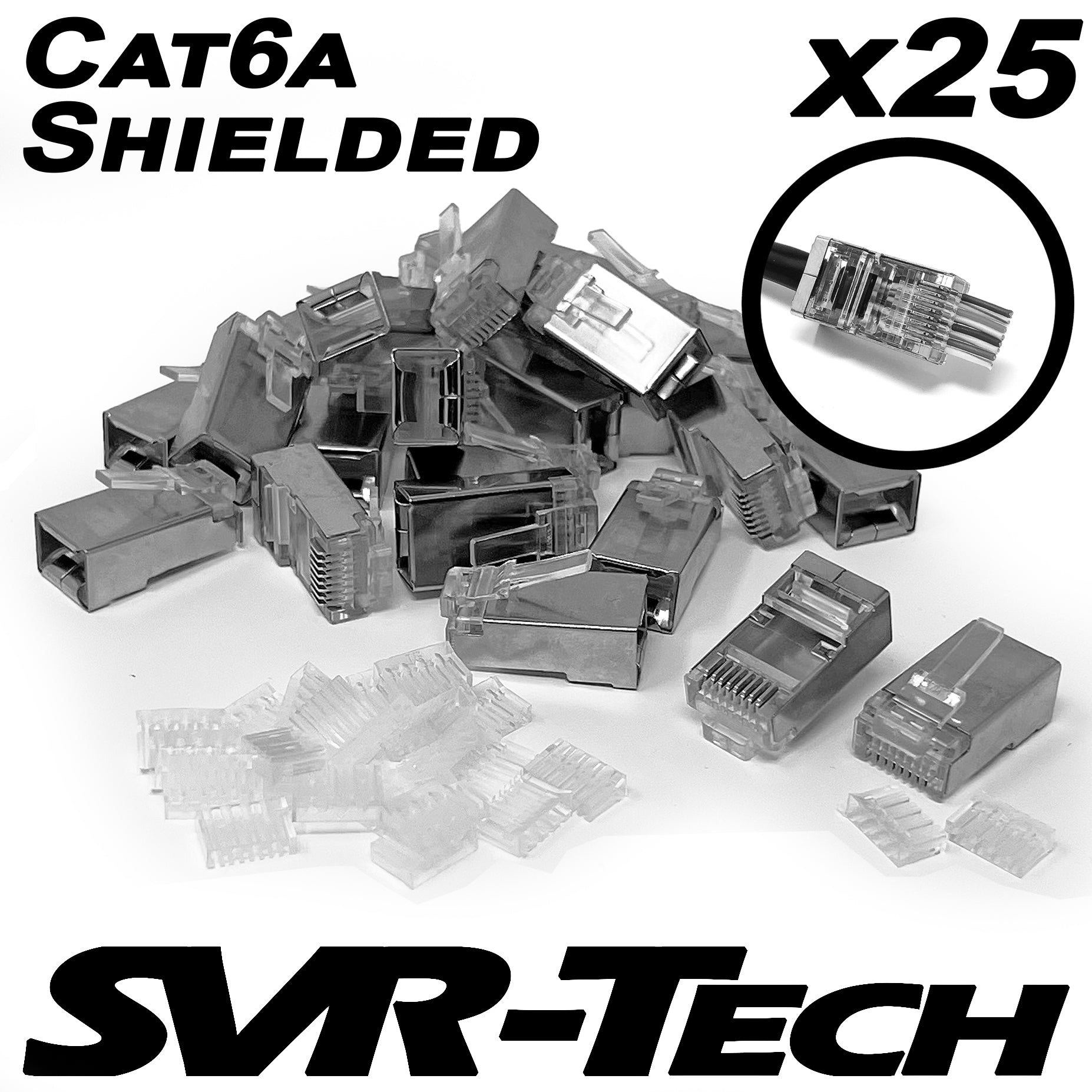

SVR-Tech RJ45 Cat6a Shielded Connectors with Guide Rail
£7.95
1
Key elements
Staggered conductor layout
The staggered internal arrangement is designed to accommodate the larger conductors used in compatible Cat6 and Cat6a cable.
Shielded connector housing
The connector housing is shielded for use within compatible shielded network installations.
Built around cable fitment
Designed for individual insulated solid conductors up to 1.2 mm in diameter, including the insulation.
Technical information
Specifications
- Pack size
- 25 connectors
- Cable type
- Cat6 / Cat6a shielded
- Conductor fit
- Up to 1.2 mm incl. insulation
- Design
- Closed-end + guide rail
- SKU
- SVRST-6ASHD
In the box
What’s included
- 25 × SVR-Tech Cat6a Shielded RJ45 Connectors
- Guide rails for termination
Product details
Shielded Cat6/Cat6a RJ45 connectors for larger conductors, with a guide rail for alignment.
SVR-Tech Cat6a Shielded RJ45 Connectors are designed for compatible Cat6 and Cat6a cable with individual insulated solid conductors up to 1.2 mm in diameter, including the insulation. A staggered internal layout helps accommodate the larger conductors used in this cable class.
Unlike the pass-through products in the range, this is a standard closed-end connector. The supplied guide rail helps organise and align the conductors before they are inserted into the plug and crimped.
Key features
- Suitable for compatible Cat6 and Cat6a shielded cable
- For individual insulated solid conductors up to 1.2 mm in diameter
- Staggered internal conductor layout
- Guide rail supplied for conductor alignment
- Standard closed-end design — not pass-through
- Shielded connector housing
- 25 connectors per pack
Check cable fit before ordering
Cat6 and Cat6a cable dimensions vary. Check the diameter of the individual insulated solid conductors before ordering; the published limit for this connector is 1.2 mm including insulation.
What’s included
- 25 × SVR-Tech Cat6a Shielded RJ45 Connectors
- Guide rails for termination
Frequently asked questions
Are these connectors pass-through?
No. This is a standard closed-end RJ45 connector with a guide rail, not a pass-through connector.
Which cable are these connectors for?
They are designed for compatible shielded Cat6 and Cat6a network cable.
What conductor size will fit?
The published fitment is for individual insulated solid conductors up to 1.2 mm in diameter, including the insulation.
What is the guide rail for?
The guide rail helps arrange and align the conductors before they are inserted into the connector and crimped.
How many connectors are included?
The pack contains 25 shielded RJ45 connectors with guide rails for termination.
-
