240 × 240 TISR-enhanced thermal imaging
TOPDON's TISR image enhancement upscales the native 128 × 128 infrared sensor to 240 × 240 thermal images, paired with a smooth 25 Hz refresh rate for quicker inspection.
TOPDON TC004 Mini Thermal Imaging Camera
£132.90
1
Key elements
Automatic hot, cold & centre-point detection
Automatically tracks maximum, minimum and centre temperatures, with configurable high- and low-temperature warnings to help flag abnormal readings quickly.
IP54 protection & 2 m drop resistance
Built for everyday inspection work with IP54-rated dust and splash protection and manufacturer-rated resistance to drops of up to 2 metres.
Up to 15 hours of battery runtime
The built-in 2,900 mAh battery provides up to 15 hours of use, with USB-C charging and adjustable automatic power-off settings for longer working sessions.
Technical information
Specifications
- TISR resolution
- 240 × 240
- Temperature range
- -20°C to 450°C
- Refresh rate
- 25 Hz
- Battery runtime
- Up to 15 hours
- SKU
- TOPDON-TC004-MINI
- GTIN / barcode
- 921357512823

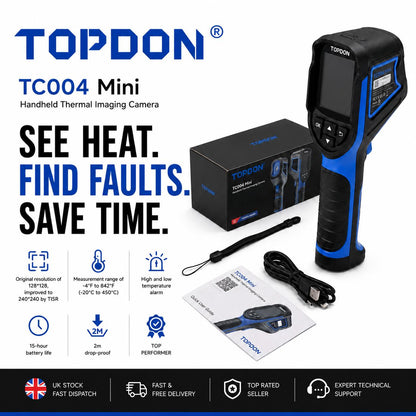

In the box
What’s included
- TOPDON TC004 Mini thermal camera
- Hanging strap
- USB-A to USB-C cable
- Quick user guide
Product details

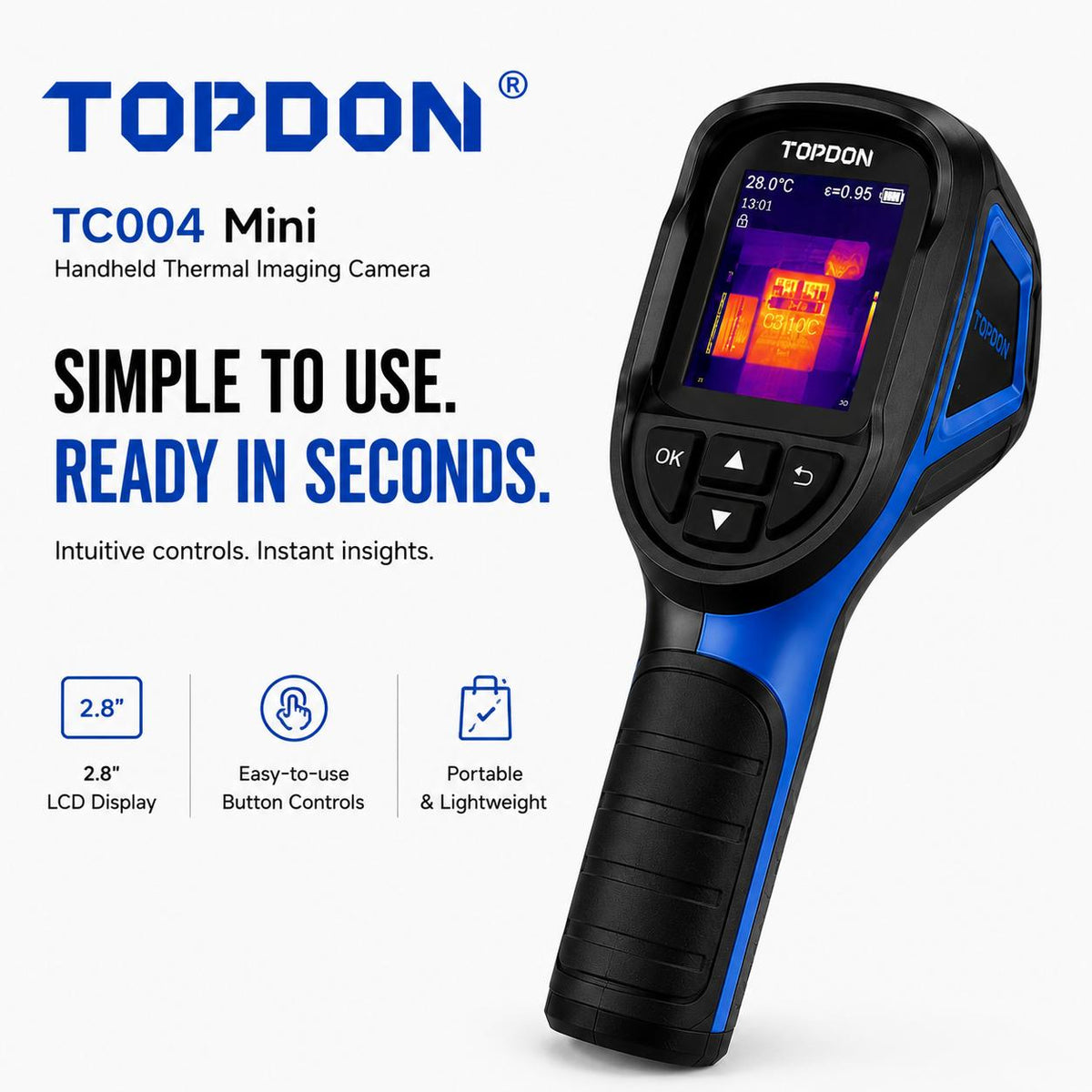

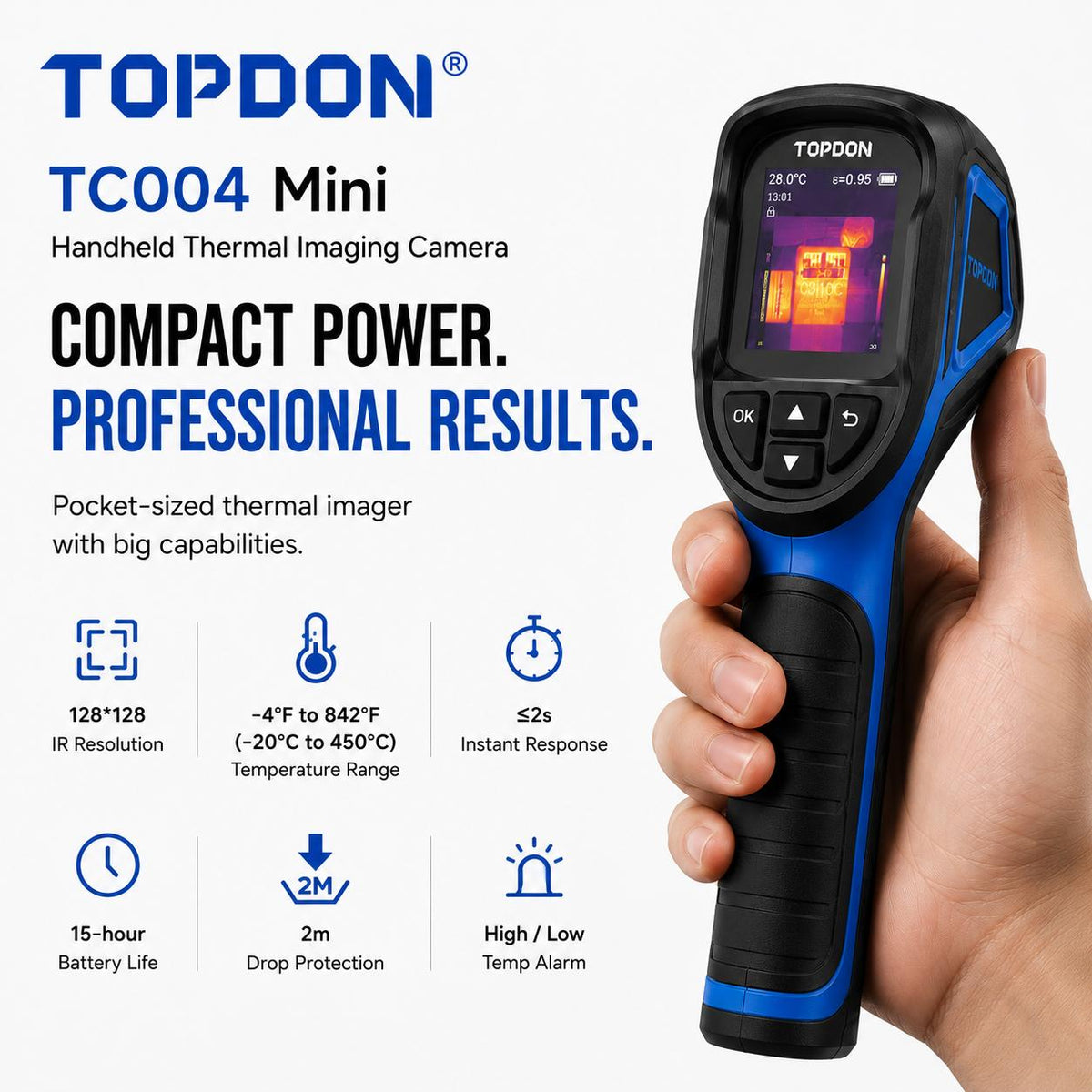

TOPDON TC004 Mini Thermal Imaging Camera
A compact handheld thermal camera for electrical, HVAC, automotive, building and maintenance inspections. The TC004 Mini combines a native 128 × 128 infrared sensor with TOPDON's TISR image enhancement to produce 240 × 240 thermal images, with a smooth 25 Hz refresh rate for fast scanning.
Its -20°C to 450°C measurement range, automatic hot/cold/centre-point detection and configurable temperature alerts make it useful for finding abnormal heat patterns, checking electrical components, inspecting heating systems and identifying areas that may warrant closer investigation.
Key features
- 240 × 240 TISR-enhanced imaging – native 128 × 128 infrared resolution enhanced by TOPDON's TISR technology.
- 25 Hz refresh rate – smooth real-time thermal scanning.
- -20°C to 450°C temperature range – suitable for a broad range of inspection tasks.
- <40 mK thermal sensitivity – detects small temperature differences.
- Automatic temperature tracking – displays maximum, minimum and centre-point temperatures.
- High/low temperature alerts – configurable warnings help highlight abnormal readings.
- IP54 protection – rated against dust ingress and splashing water.
- 2 m drop resistance – manufacturer-rated for everyday field use.
- Up to 15 hours runtime – built-in 2,900 mAh rechargeable battery.
- USB-C charging and file transfer.
Technical specifications
- Infrared resolution: 128 × 128
- TISR-enhanced resolution: 240 × 240
- Refresh rate: 25 Hz
- Temperature range: -20°C to 450°C (-4°F to 842°F)
- Measurement accuracy: ±2°C or ±3% of reading, whichever is greater
- Thermal sensitivity (NETD): <40 mK
- Field of view: 40° × 30°
- Spectral range: 8–14 μm
- Display: 2.4-inch screen
- Internal storage: 512 MB
- Battery: built-in 2,900 mAh rechargeable battery
- Battery runtime: up to 15 hours
- Protection rating: IP54
- Colour palettes: White Hot, Black Hot, Iron, Rainbow and Red Hot

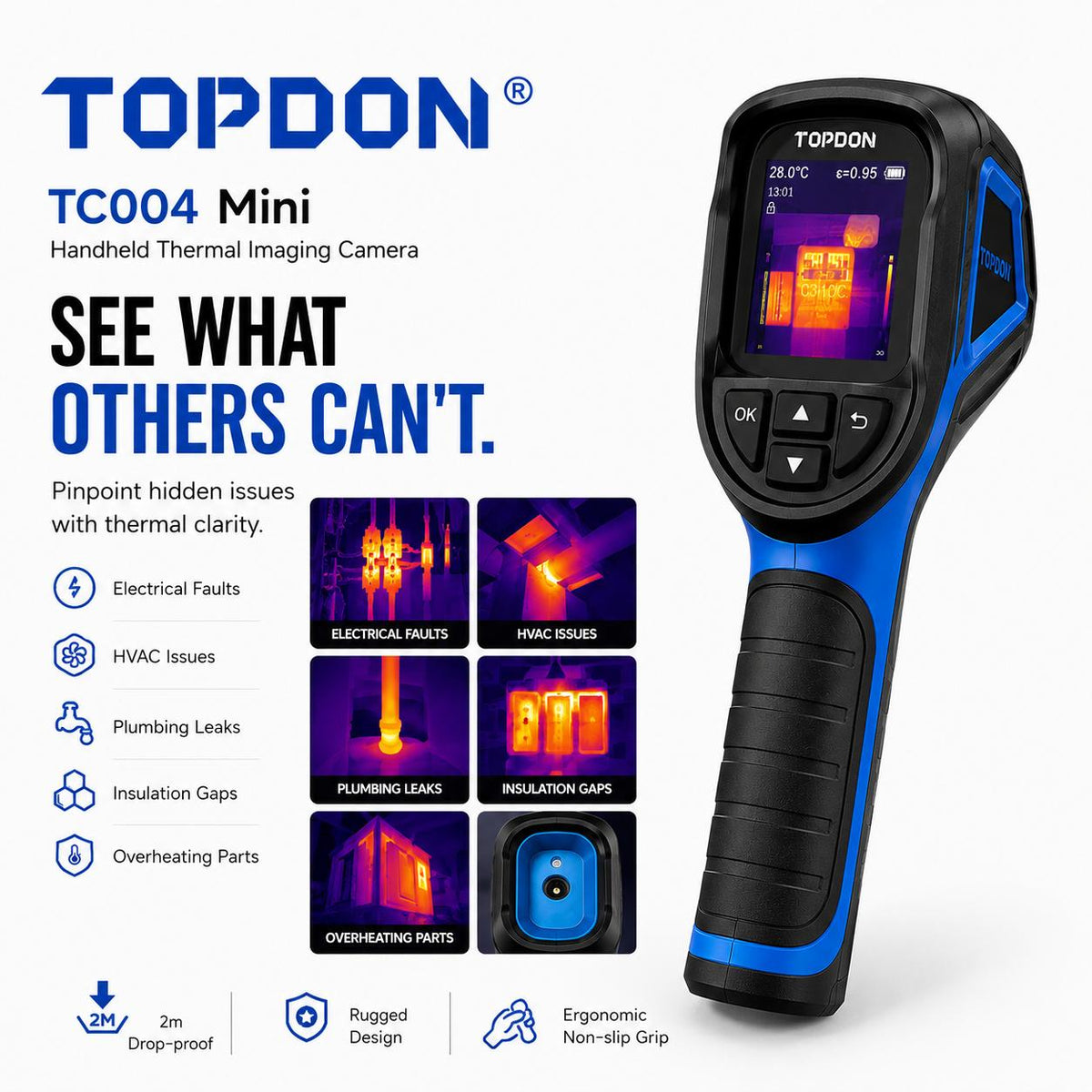

Typical applications
- Electrical inspection and overheating components
- HVAC and heating-system checks
- Building and home-energy inspection
- Automotive maintenance
- Mechanical and industrial inspection
- Leak and moisture-related investigation

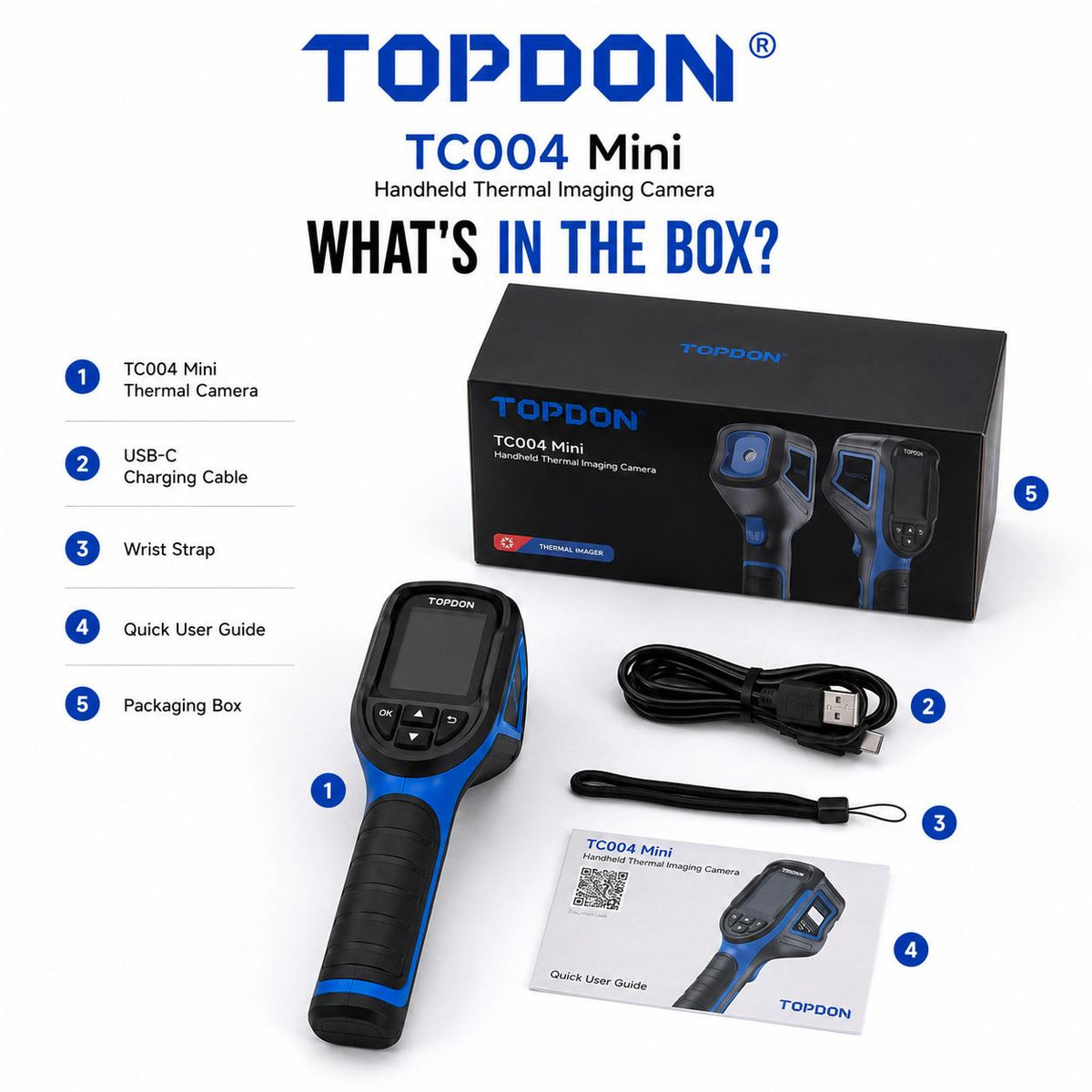

What's included
- TOPDON TC004 Mini thermal camera
- Hanging strap
- USB-A to USB-C cable
- Quick user guide
Frequently asked questions
What is the thermal resolution of the TOPDON TC004 Mini?
The infrared sensor has a native resolution of 128 × 128. TOPDON's TISR image-enhancement technology upscales the thermal image to 240 × 240.
What temperature range can the TC004 Mini measure?
The specified measurement range is -20°C to 450°C (-4°F to 842°F). The user manual states measurement accuracy of ±2°C or ±3% of the reading, whichever is greater.
Can the TC004 Mini see through walls or glass?
No. A thermal camera measures infrared energy from surfaces; it does not see through walls, glass or water. It is used to identify surface-temperature patterns and anomalies.
How long does the TC004 Mini battery last?
TOPDON specifies up to 15 hours of runtime from the built-in 2,900 mAh battery. The camera charges through USB-C.
What is included with the TOPDON TC004 Mini?
The manufacturer packing list includes the TC004 Mini thermal camera, hanging strap, USB-A to USB-C cable and quick user guide.
